Elevator
Elevator

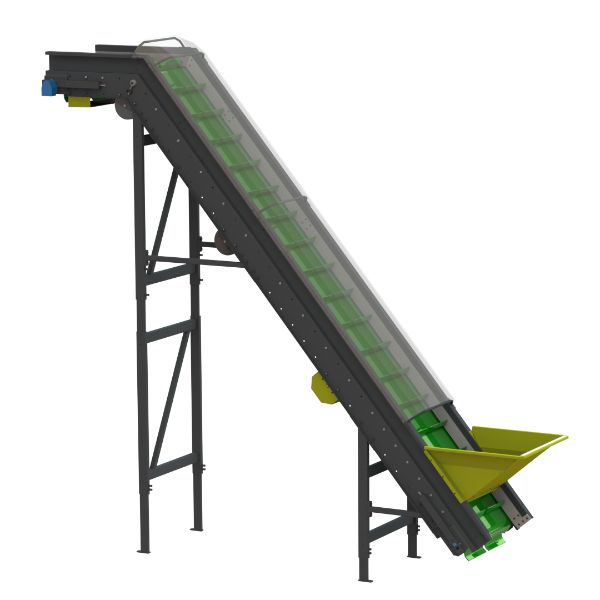

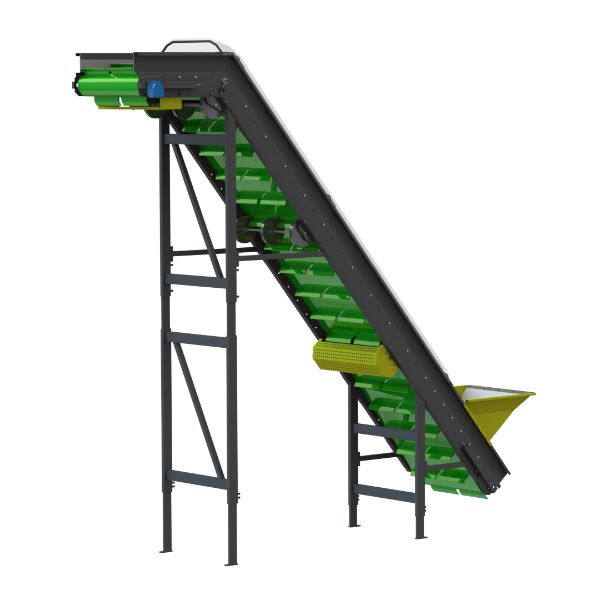

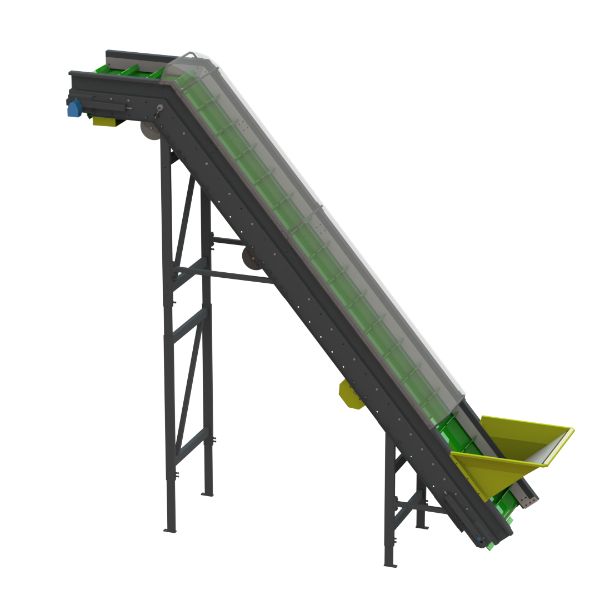

The Elevator has been engineered to ensure a continuous and reliable upward product movement for the filling of big bags or the feeding input of a weigher. With a constant speed, the elevator is connected to the big bag filler or weigher to ensure perfect synchronicity of product handling. Designed with a cover and a belt with cleats, to ensure products is not able to roll backwards. It is customizable in height and length.
Weighing range (Discharge units) | 800 – 900 kgs |
Power consumption | 1,1 kW |
Air consumption | None |
Voltage | 3x 400V/230V, -0- + ground, 50 Hz 3x 480/277V, -0- + ground, 60 Hz |
Recommended combinations | BBF – MHW |

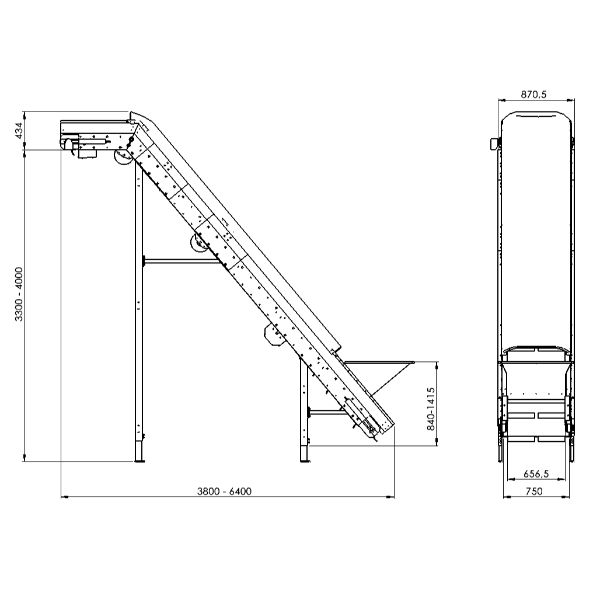

Options/Upgrade | Height of the chute Height/Length of the belt (3300-3600mm or 3750-4000mm) Length of the horizontal discharge (850mm or 1950mm) |
Download brochure | EN NL |
Watch video | |
